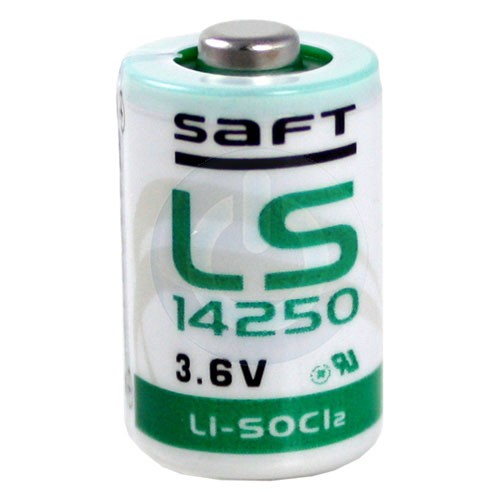

Saft LS14250 Description
The Saft LS1420 is a cylindrical primary lithium battery with a 3.6V nominal voltage and a capacity of 1200mAh. This battery is designed for use in high-demand applications that require reliable, long-lasting power, such as utility meters, security systems, and medical devices.
With its advanced lithium chemistry, the Saft LS1420 provides exceptional performance and reliability, even in extreme temperatures and harsh environments. It has a wide operating temperature range of -60°C to +85°C and a long shelf life of up to 10 years, making it ideal for applications that require infrequent maintenance.
The Saft LS1420 features a hermetic glass-to-metal seal that provides excellent resistance to leakage and corrosion, ensuring that the battery maintains its performance over time. It also has a low self-discharge rate, which allows it to retain its charge for extended periods when not in use.
Overall, the Saft LS1420 is a high-performance lithium battery that delivers exceptional reliability and longevity, making it an ideal choice for demanding applications that require long-lasting power.
Saft LS14250 Specification
- Nominal Voltage: 3.6V
- Nominal Capacity: 1200mAh
- Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
- Max Continuous Current: 35mA
- Max Pulse Current: 70mA
- Operating Temperature Range: -60°C to +85°C
- Self-Discharge Rate: Less than 1% per year at 20°C
- Dimensions: 14.5mm (diameter) x 25.2mm (height)
- Weight: 10g
It’s important to note that the Saft LS14250 is a non-rechargeable battery and should not be charged or used in devices that require rechargeable batteries. Additionally, this battery has a high energy density and should only be used in devices that are specifically designed to handle the high voltage and energy output of lithium thionyl chloride batteries.
