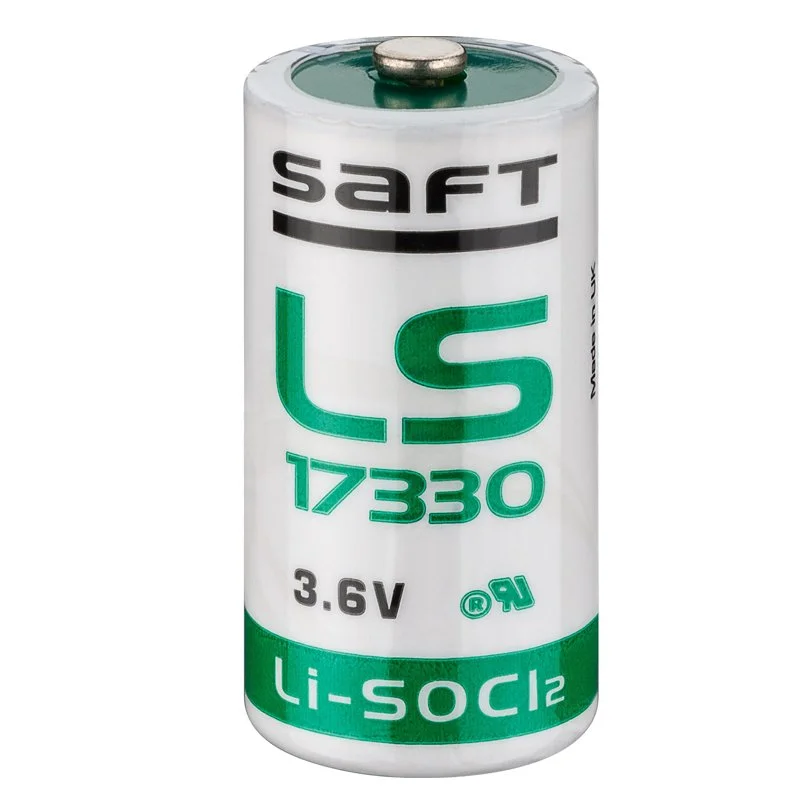

5 x Saft LS17330 Li-SOCl2 3.6V Battery

Saft LS17330 Battery Description

The Saft LS17330 is a type of lithium-thionyl chloride (Li-SOCl2) primary battery, also known as a non-rechargeable or disposable battery. It is a cylindrical battery with a diameter of 17mm and a height of 33mm, hence the name LS17330.

This battery has a nominal voltage of 3.6V and a capacity of approximately 2,400mAh. It is commonly used in applications that require a long-lasting and reliable power source, such as in electronic meters, security systems, tracking devices, and medical instruments.

The Saft LS17330 battery is known for its high energy density, wide operating temperature range, and low self-discharge rate. It also has a long shelf life of up to 10 years when stored at room temperature.

It is important to note that this battery is not rechargeable and should not be disposed of in regular household waste. Proper disposal methods should be followed to ensure environmental safety.

Saft LS17330 Battery Specification

• Chemistry: Lithium-thionyl chloride (Li-SOCl2)
• Nominal voltage: 3.6V
• Capacity: 2,400mAh
• Max continuous current: 100mA
• Max pulse current: 200mA
• Operating temperature range: -60°C to +85°C (-76°F to +185°F)
• Storage temperature range: -60°C to +40°C (-76°F to +104°F)
• Shelf life: Up to 10 years
• Dimensions: 17mm diameter x 33.4mm height
• Weight: 18g
