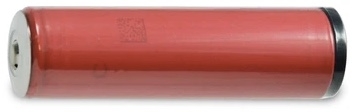

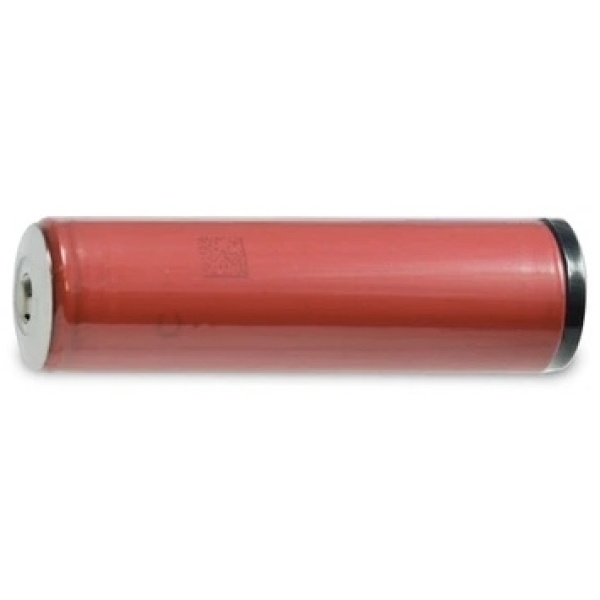

Panasonic NCR18650GA 3500mAh 3.7V 10A Li-Ion Battery (Button Top)

Panasonic NCR18650GA Button Top Description

The Panasonic NCR18650GA is a rechargeable lithium-ion battery designed for use in high-drain devices, such as high-powered flashlights, electric bikes, and power tools. It has a nominal capacity of 3500mAh and a nominal voltage of 3.6V, making it a reliable and high-performance battery option for users who need a battery that can provide long-lasting power in high-drain applications.

The Panasonic NCR18650GA battery has a cylindrical shape with a diameter of 18.6mm and a length of 69.5mm, which is a standard size for 18650 batteries. It is manufactured by Panasonic, a Japanese multinational electronics company that is one of the world’s largest producers of lithium-ion batteries.

The button top version of the Panasonic NCR18650GA battery has a protruding positive terminal (the button) on top of the battery, which allows for easy insertion and removal from compatible devices that require this type of battery.

This battery has a high discharge current and is suitable for high-power applications that require a lot of energy. It also has a high energy density, which means that it can store more energy in a smaller size than other types of batteries.

Panasonic NCR18650GA Button Top Specification

• Nominal capacity: 3500mAh
• Minimum capacity: 3350mAh
• Nominal voltage: 3.6V
• Maximum voltage: 4.2V
• Charging voltage: 4.2V
• Discharging voltage: 2.5V
• Maximum continuous discharge current: 10A
• Maximum pulse discharge current: 15A
• Chemistry: Lithium-ion
• Protection: Unprotected
• Button top: Yes
• Diameter: 18.6mm ± 0.1mm
• Height: 69.5mm ± 0.5mm
• Weight: 50g ± 1g
