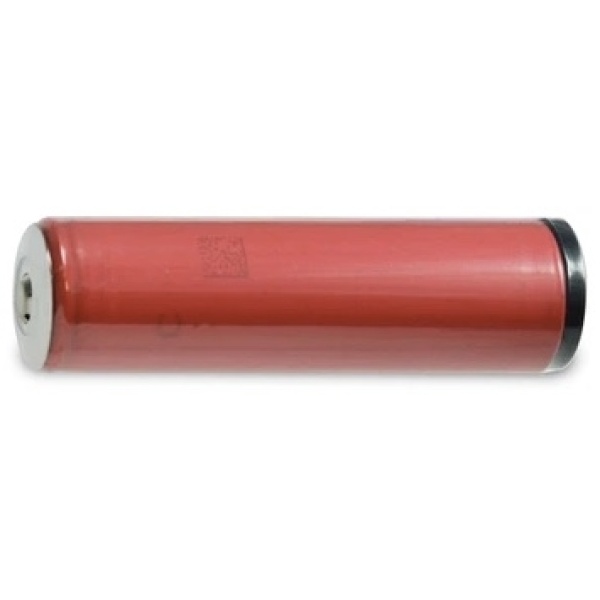

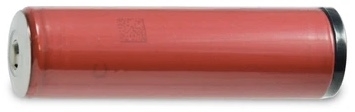

Sanyo NCR18650-GA Battery Description
The Sanyo NCR18650-GA Button Top is a high-capacity rechargeable lithium-ion battery with a capacity of 3500mAh and a nominal voltage of 3.6V. It is commonly used in electronic devices such as flashlights, e-cigarettes, and laptops.
The Sanyo NCR18650-GA Button Top battery has a cylindrical shape with a diameter of 18mm and a length of 68.5mm, making it a standard size for 18650 batteries. It is known for its high capacity and long cycle life, making it suitable for devices that require long runtimes and frequent recharging.
This battery is manufactured by Sanyo Electric Co., Ltd., a Japanese electronics company that specializes in the production of rechargeable batteries and other electronic components.
The Sanyo NCR18650-GA Button Top battery has a button top design that provides additional protection against over-discharge, overcharge, and short circuits. It also has a high discharge rate of 10A, which makes it suitable for high-drain devices that require a lot of power.
As with all lithium-ion batteries, it is important to use and store the Sanyo NCR18650-GA Button Top battery properly to prevent damage or safety hazards. It is recommended to use a compatible charger and avoid overcharging, over-discharging, and exposing the battery to high temperatures or moisture. Always follow the manufacturer’s instructions and safety guidelines for the safe use and storage of lithium-ion batteries.
Sanyo NCR18650-GA Battery Specification
- Nominal capacity: 3500mAh
- Minimum capacity: 3350mAh
- Nominal voltage: 3.6V
- Charging voltage: 4.2V
- Max charging current: 1.75A
- Max continuous discharge current: 10A
- Max pulse discharge current: 15A
- Standard charging current: 0.875A
- Charging temperature range: 0°C to 45°C
- Discharging temperature range: -20°C to 60°C
- Dimensions: 18mm diameter x 68.5mm length (with button top)
- Weight: 48g
