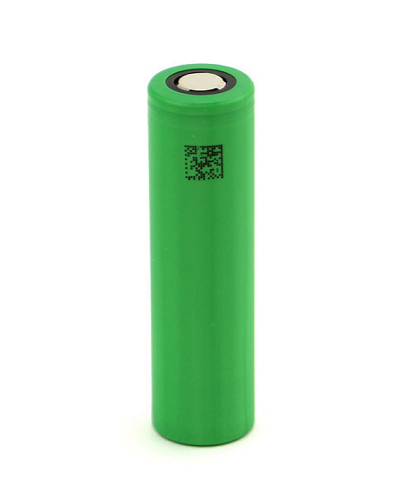

Sony VTC5 18650 Description
The Sony VTC5 is a high-performance rechargeable lithium-ion battery that is widely used in various electronic devices, including mods, flashlights, and other high-drain devices. It is considered one of the best 18650 batteries on the market due to its high capacity and discharge rate.
The Sony VTC5 18650 battery has a nominal voltage of 3.6 volts and a capacity of 2600mAh, which means it can deliver a high amount of power for an extended period of time compared to other standard 18650 batteries. This battery has a flat top design and measures 18mm in diameter and 65mm in length, making it compatible with most devices that use 18650 batteries.
The Sony VTC5 battery is capable of high discharge rates, with a maximum continuous discharge rate of 20 amps and a maximum pulse discharge rate of 30 amps. This makes it an ideal choice for enthusiasts and hobbyists who require a battery that can handle high wattage vaping and other high-drain applications.
The battery does not have a built-in protection circuit, so it is important to use it with a device that has its own protection circuit or with a compatible external battery charger that has overcharge and over-discharge protection.
Overall, the Sony VTC5 18650 battery is a high-performance battery that is ideal for use in high-drain devices, and its high capacity and discharge rate make it a popular choice among enthusiasts and hobbyists. However, it is important to use it with caution and with the appropriate safety measures in place due to its high discharge capabilities.
Sony VTC5 18650 Specification
- Battery Type: Rechargeable lithium-ion battery
- Model Number: VTC5
- Nominal Voltage: 3.6 volts
- Capacity: 2600mAh
- Chemistry: Lithium-ion (Li-ion)
- Protection Circuit: None
- Maximum Continuous Discharge Rate: 20 amps
- Maximum Pulse Discharge Rate: 30 amps
- Charging Voltage: 4.20 volts
- Standard Charge Current: 1.5 amps
- Maximum Charge Current: 4 amps
- Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature Range: -20°C to 35°C (-4°F to 95°F)
- Dimensions: 18mm diameter x 65mm length
- Weight: 44.3g (1.56oz)
